Description
Product Overview

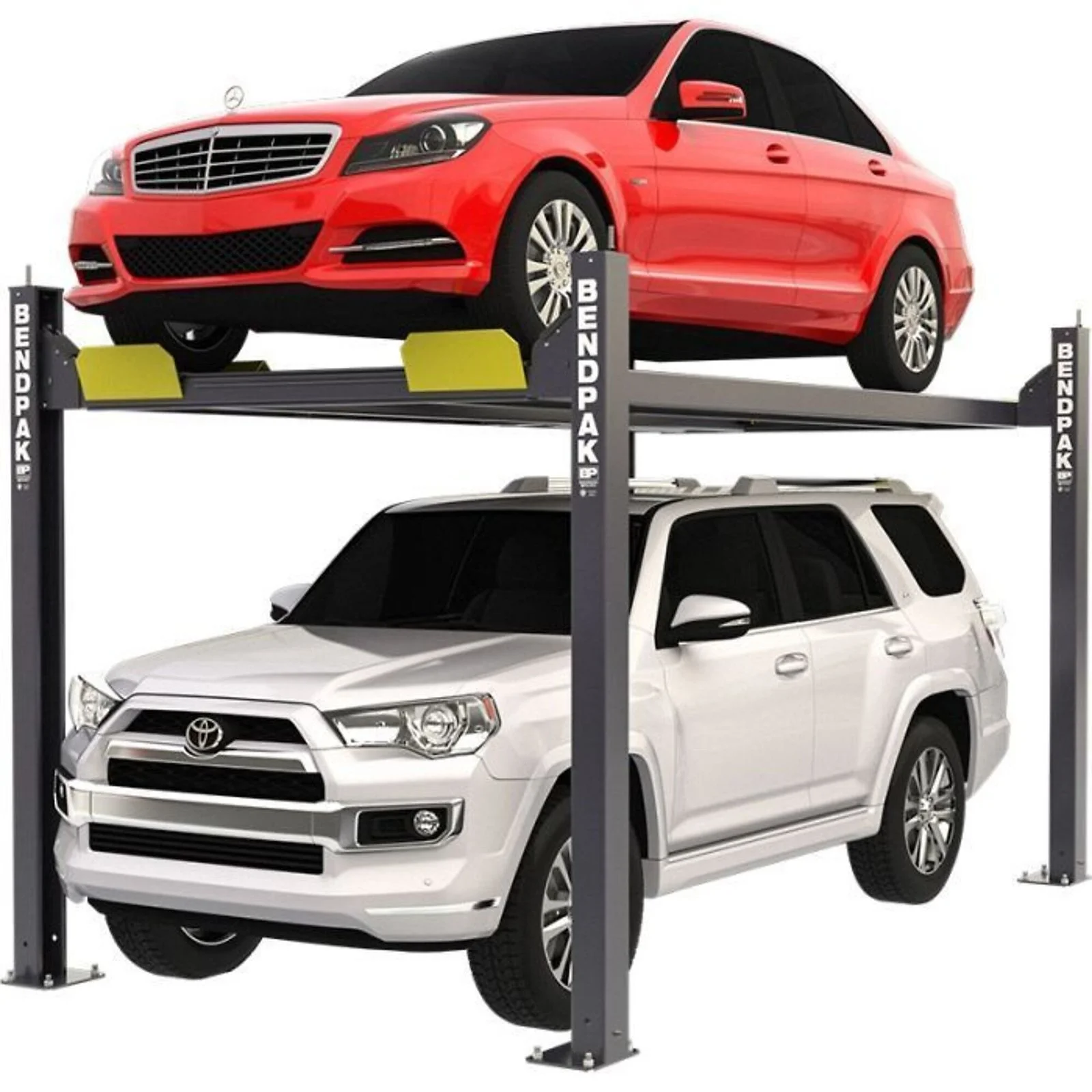

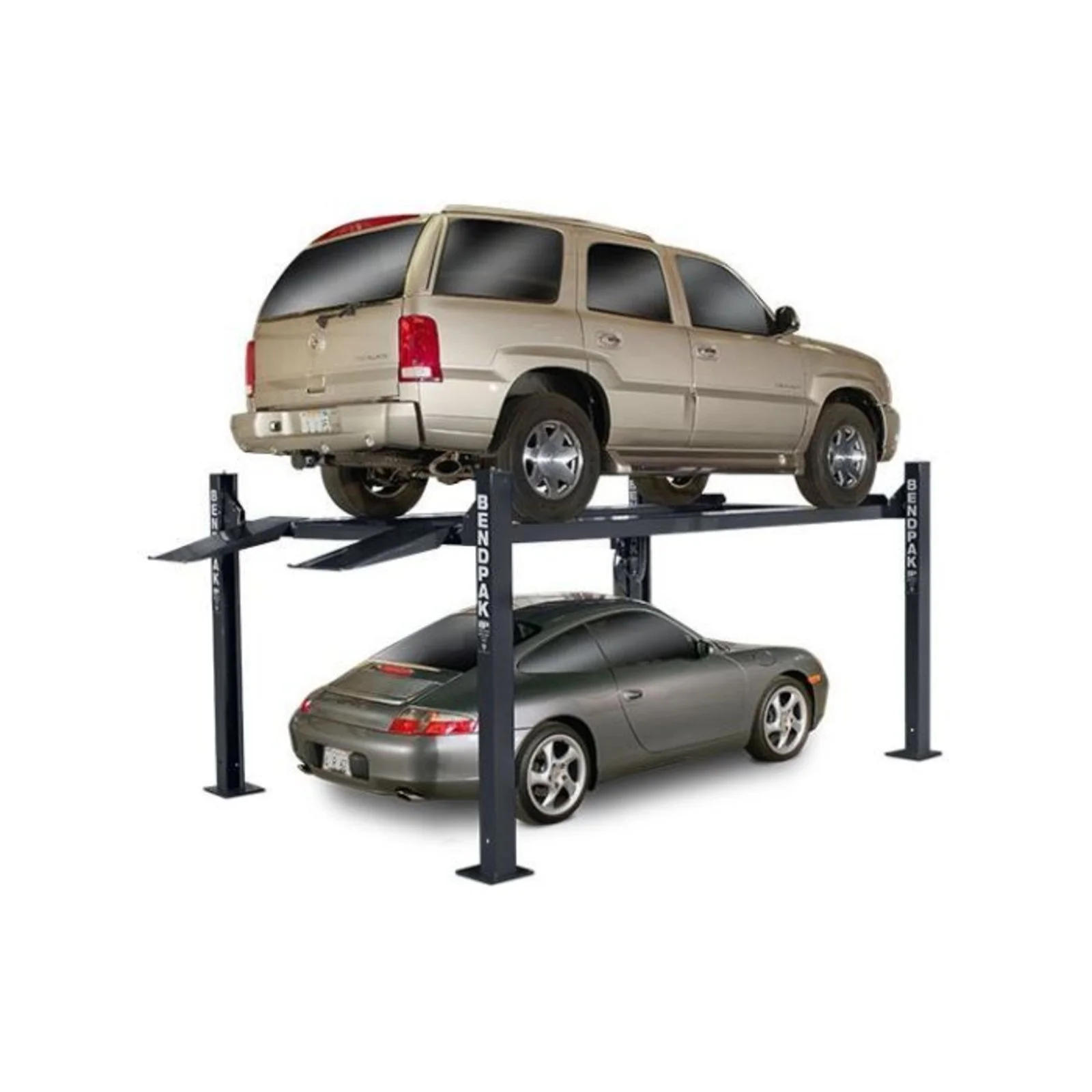

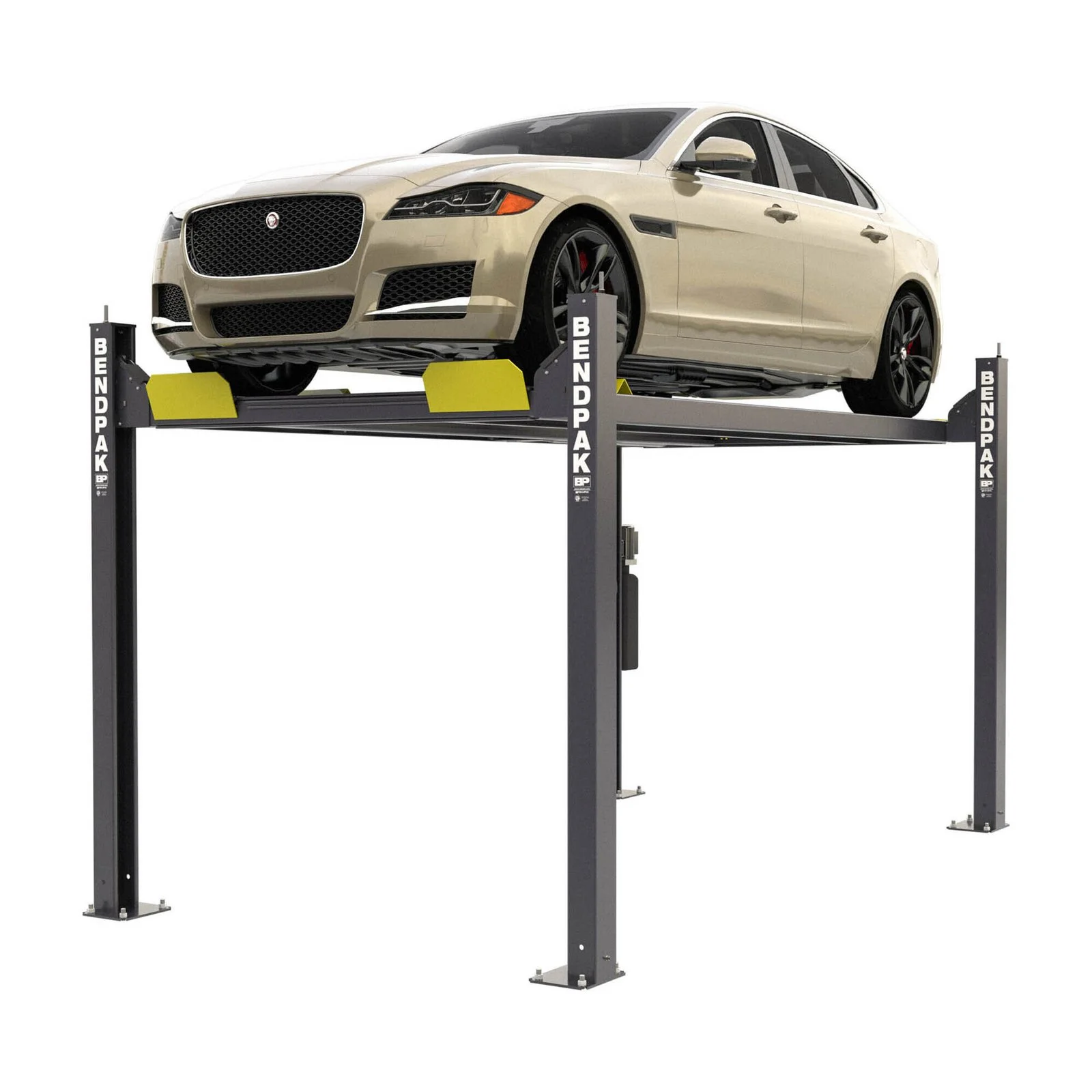

BendPak’s HD-7W is the standard-width car lift model in the HD-7 series. With a 110.25in. overall width and a spacious 100.25in. spread between the columns, there’s plenty of room to park most cars and trucks in the lower position.
Product Details & Specifications
| This leaves ample space for you to maneuver. Dependable, Light-Duty 7,000-lb. Capacity Four-Post Lift The 7,000-lb. capacity HD-7W is ideal for shops that want the versatility to park sports cars, sedans, light-duty trucks and SUVs in the same structure. | |
| There’s even enough side clearance to accommodate larger truck mirrors. Even so, this lift is only slightly larger than a typical parking space. | |
| Due to its reduced footprint, as well as its ability to house a variety of vehicle types in a low-ceiling garage, the HD-7W is an extremely attractive parking and maintenance solution for both homeowners and professional technicians. | |
| Dependable design The HD-7W features four stainless steel wire ropes, as well as a lone hydraulic cylinder that remains tucked underneath the runway. This powerful cylinder ensures you get a super-durable design that requires minimal maintenance over time. | |
| Dual-hub wire rope sheaves Larger wire rope sheaves prevent undue wear-and-tear on the four-post lift’s axles, wire rope and even the sheaves themselves. Dual-hub and oversized sheaves provide a safer product that lasts longer and costs less to maintain. | |
| The larger the sheave, the less friction against the components, so we make every single sheave larger than necessary. Typically speaking, the bigger the lift, the bigger the sheave! Features + Benefits HD-7 series. | |
| With a 110.25″ overall width and a spacious 100.25″ spread between the columns Wide drive-thru with tall lifting height and short runways Forklift Required Single hydraulic cylinder mounted underneath runway Features heavy-duty 3/8″ aircraft cable Multi-position safety locks in each column Adjustable lock ladders add versatility Push button pneumatic safety release Electric / hydraulic power system Attribute Specification item# 53516 Brand BendPak Manufacture’s Warranty 12 months parts/12months labor Ship Weight 1756.0 LB Capacity 7,000 lb Max. | |
| Rise 7 ft Horsepower 3 HP Attribute Specification Motor Phase Single-phase Volts 220 Lock Spacing 4 in Locking Position (qty.) 17 Time of Full Rise 60 sec. Drive-Thru Clearance 86.5 in Material Steel |
