Description
Product Overview

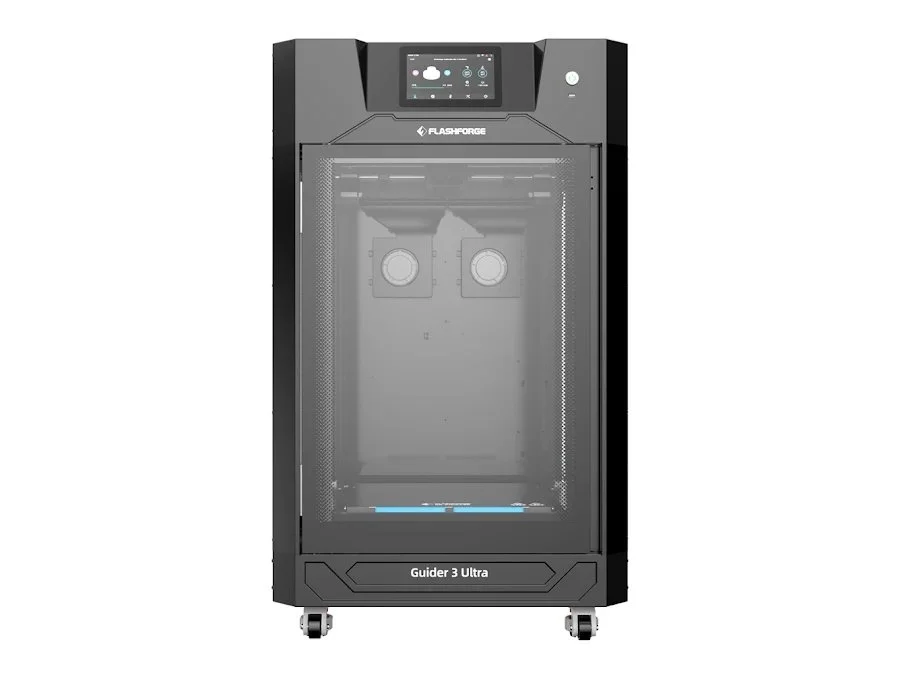

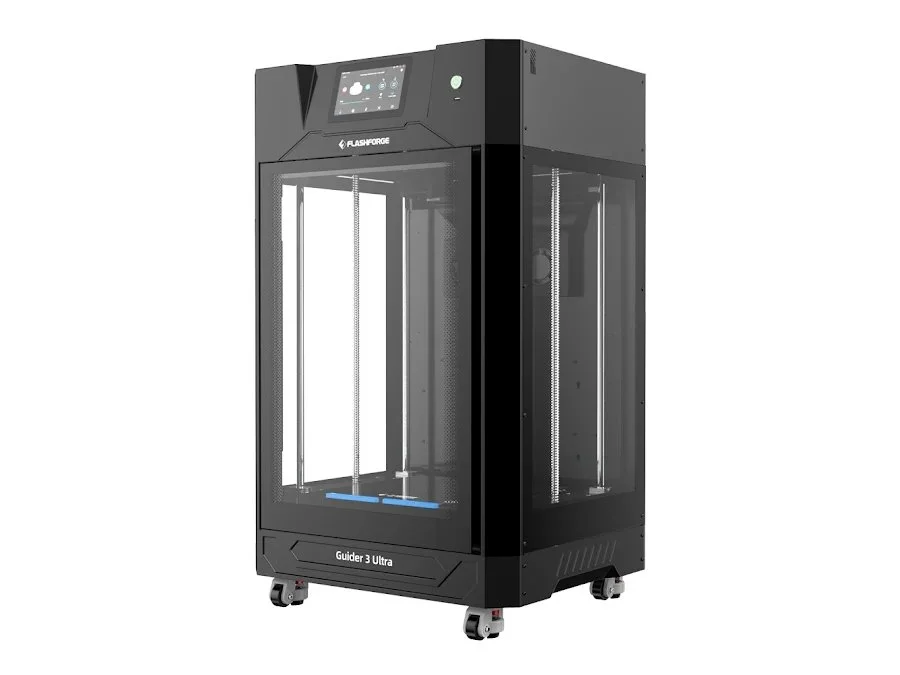

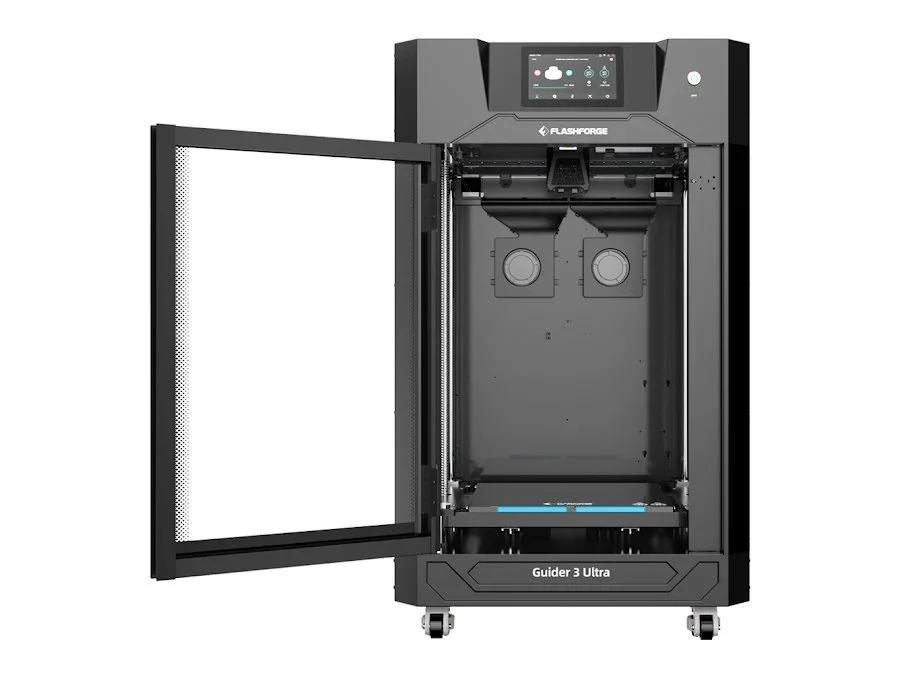

The FlashForge Guider 3 Ultra is an ideal choice for commercial-grade additive manufacturing, offering reliable and efficient performance.
Product Details & Specifications
| Thanks to its CoreXY design, this 3D printer combines FlashForge’s renowned technology with high speed printing, high fidelity, and quiet operation in one convenient package. Whether you need high-precision prints or silent printing, the FlashForge Guider 3 Ultra is the perfect all-in-one solution. | |
| Dual Extrusion High speed & quiet printing Built-in filament drying chamber & Hepa 13 air filtration Flexible and removable steel plate Features The FlashForge Guider 3 Ultra offers unparalleled speed and efficiency for your business needs with its CoreXY design, combining the best of FlashForge‘s renowned technology. | |
| High speed | 500mm/s print speed. Extremely sturdy z-axis guides and ball screws for the stability of large models and long print jobs Built-in filament drying chamber & Hepa 13 air filtration system High-temperature extruder 320C Quick release nozzle Passive filament storage chambers |
|---|---|
| Specifications Printing Printing Precision | ±0.15mm or 0.002mm/mm |
| Position Precision | X/Y axis: 0.011 mm; Z axis; 0.0025 mm |
| Layer Thickness | 0.05-0.4mm |
| Build Volume | 330(L) x 330(W) x 600(H) mm |
| Nozzle Diameter | 0.4 mm Standard (Optional 0.6 mm/0.8 mm) |
| Maximum Extruder Temperature | 350°C (608°F) Adjustable |
| Heated Build Plate Temperature: Up to 110°C (230°F) Filament Diameter | 1.75 mm |
| Filament Compatibility | PA-CF, PA-GF, PETG-CF, PETG-GF, |
| PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA Print Speed | 10-500 mm/s |
| Mechanical & Dimensions Number of Extruders: One Printer Dimensions | 496 (L) x 436 (W) x 696 (H) mm (19.5 x 17 x |
| 27 in) Packaging Dimensions | 585 (L) x 530 W) x 760 (H) mm (23 x 21 x |
| 30 in) Net Weight | 60 LBS (27 KG) Electrical Power Supply: AC100-240V / DC24V / 20.8A, |
| 650W HD Touch Screen | 4.3 inch |
| Connectivity: USB Cable, USB Stick, Wi-Fi, Ethernet Certification | CE / FCC / |
| RoHS Software Software: FlashPrint Compatible Slicing Software | Slic3r, Skeinforge, Cura (Require to set up), |
| Simplify3D (Coming Soon) File Input Format | STL / 3MF / OBJ / FPP / BMP / PNG / |
| JPEG File Output Format | GX / G / gcode |
