Description
Product Overview

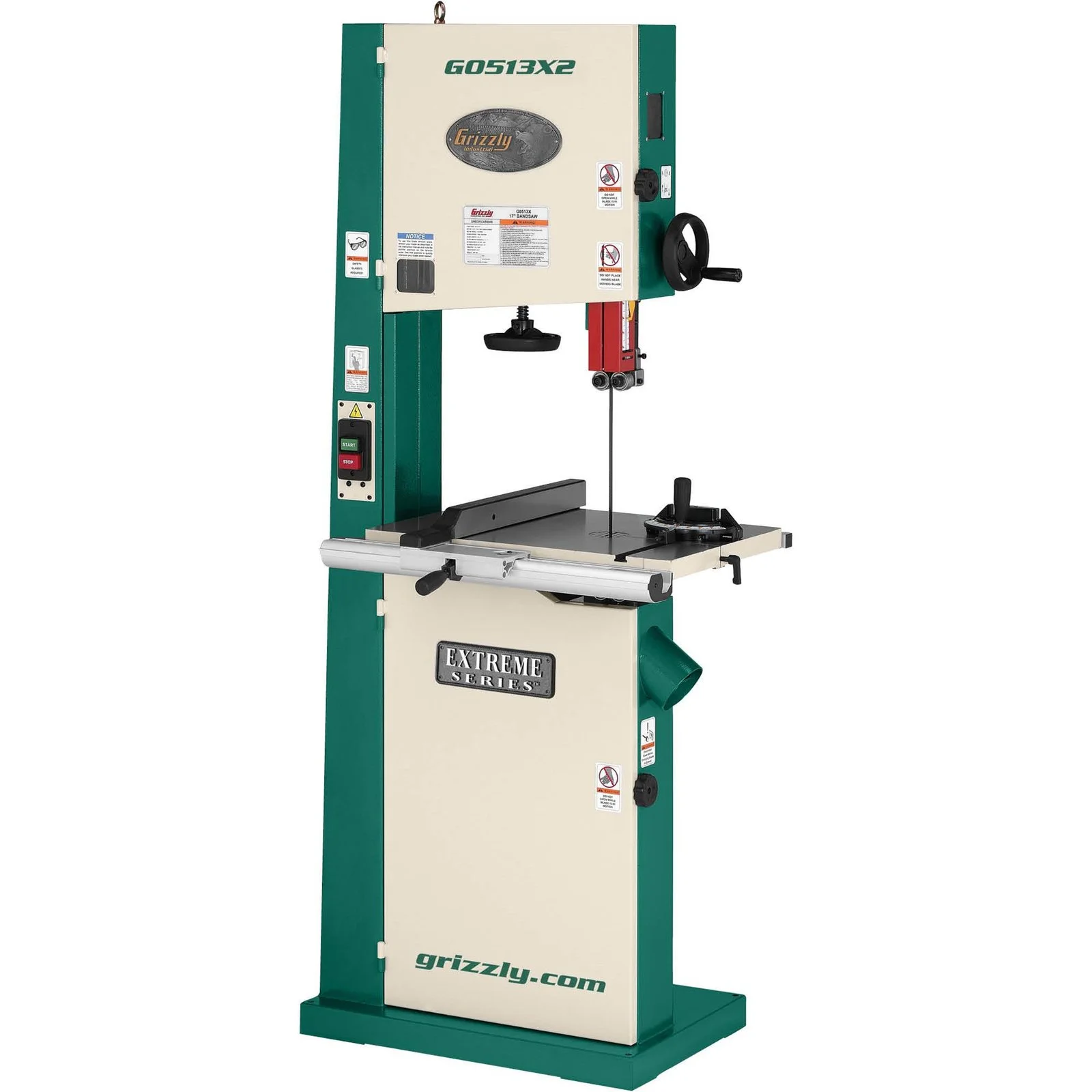

From top to bottom, this woodcutting bandsaw is built to perform. The G0513X2 17″ 2 HP Bandsaw features a heavy-duty cast-iron trunnion and double ball-bearing blade guides usually only found on machines costing much, much more.
Product Details & Specifications
| The 2 HP motor powers through hardwoods with a 12-1/8″ cutting height and 16-1/4″ throat provide ample cutting capacity for most applications. For a full range replacement and resaw blades for your G0513X2, . | |

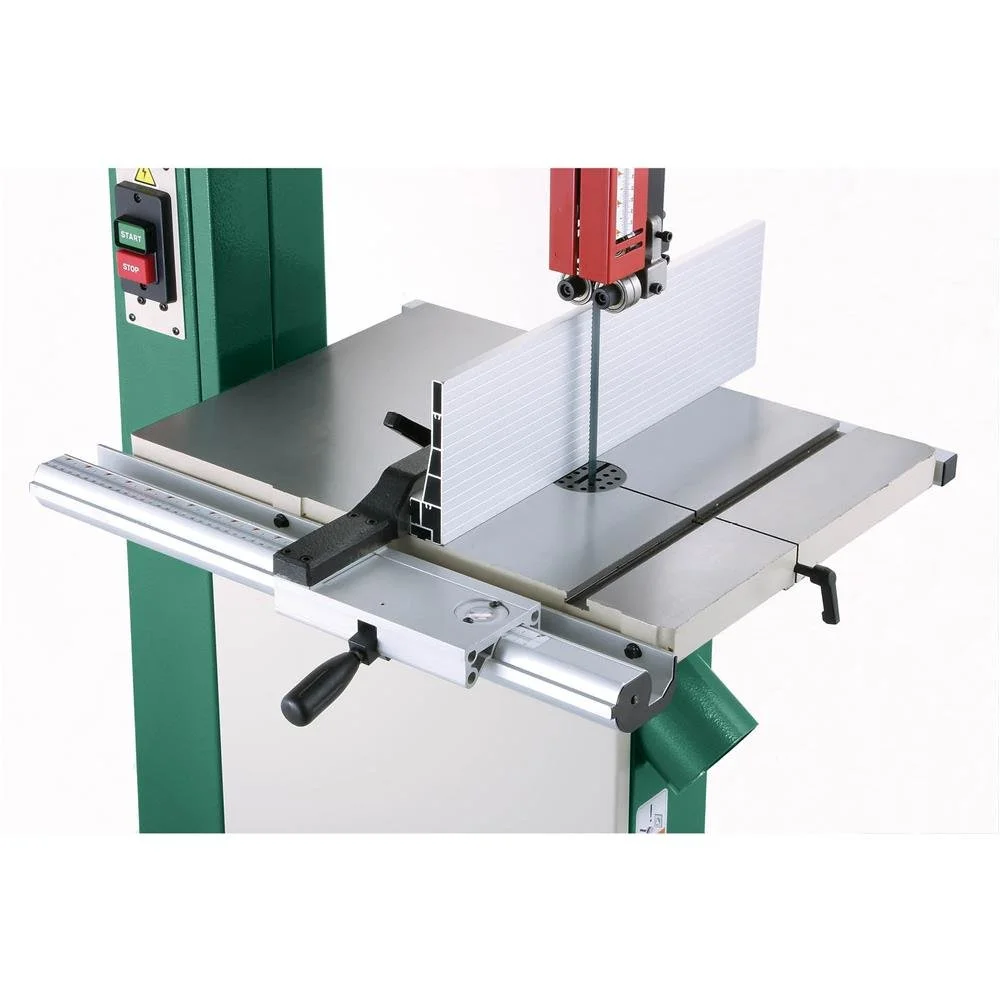

| The G0513X2 has a large 23-5/8″ x 17-1/4″ cast-iron table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table. Power and capacity are just a part of why owners continue to give this bandsaw a solid 5-star rating. | |
| The stout steel frame houses the heavy computer-balanced cast-iron wheels designed to minimize vibration during resaw operations. This machine is prewired to operate on a 220V power supply circuit that has a verified ground and meets the 220V operation requirements. | |
| If you prefer 110V, refer to the Voltage Conversion instructions in the manual. The G0513X2 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. | |
| The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw. Made in an ISO 9001 factory CSA certified | |
| SPECIFICATIONS: Motor | 2 HP, 110V/220V (prewired 220V), single-phase, 19A/9.5A Throat (max. width left of blade): 16-1/4″ Resaw capacity: 12″ Blade size: 131-1/2″ long Blade width range: 1/8″–1″ wide Blade speeds: 1700, 3500 FPM Table size: 23-5/8″ x 17-1/4″ Table tilt: 5° left, 45° right Floor to table height: |
|---|---|
| 37-1/2″ Footprint | 27″ W x 18″ D Overall size: 32″ W x 32″ D x 73″ H Approximate shipping weight: 421 lbs |
| FEATURES | Deluxe cast-iron fence with extruded aluminum resaw fence attachment Magnifying window over fence scale Precision-ground cast-iron table Quick-change blade release/tensioner Blade tension indicator Micro-adjusting geared table Blade height scale measurement Blade tracking window Cast-iron table trunnions Fully-enclosed ball-bearing blade guides Miter gauge Includes 1/2″ 6-TPI hook blade 1-year limited warranty Note: The G0513X2 does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V |
