Description
Product Overview

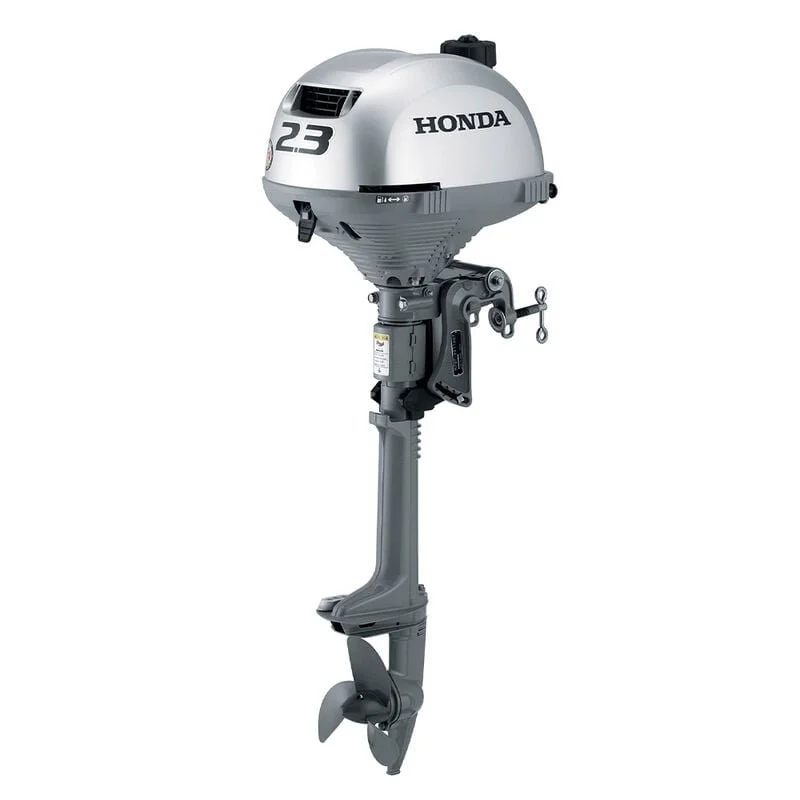

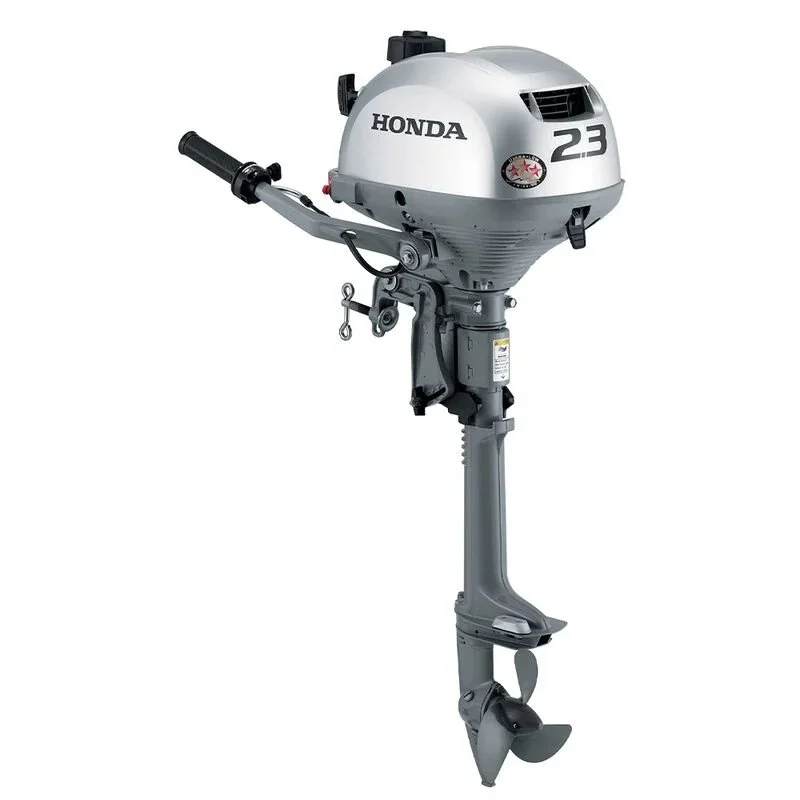

The Best Things Come in Small Packages. That’s especially true with the Honda BF2.3, one of the world’s lightest four-stroke outboards. The BF2.3 is so light, it rivals many electric motors, without the battery. But just because it’s lightweight (29.5 lbs.) doesn’t mean it cuts back on power.
Product Details & Specifications
| The BF2.3 features 15% more power over its predecessor. It also provides excellent maneuverability in tight areas. With full 360° steering and pivoting tiller handle, you get full thrust in any direction and enjoy quick, easy maneuvering. | |
| Plus the 12% larger internal gas tank provides for about one hour of operation at wide open throttle. It’s technologically advanced design gives you power and performance – without sacrificing portability. | |
| TOP FEATURES Reliable, Efficient 4-Stroke Design World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing. | |
| More Power Without Sacrificing Portability With 15% more horsepower over its predecessor, this ultra lightweight powerhouse produces surprising speed and maneuverability. Lightweight And Compact The BF2.3 is incredibly light and easy to transport. | |
| Weighing less than 30 pounds, it’s the ideal engine for dinghies, car-toppers, and other types of small boats. Precise Throttle Control A twist grip throttle allows for precise throttle control. The throttle tensioner minimizes driver fatigue. | |
| Forced Air Cooled Engine The air-cooled block eliminates concern over clogged water pumps and debris being sucked into the power head, while also reducing maintenance. Ultra Low 3-Star CARB Emissions Environmentally conscious technology. | |
| All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board’s standards. True 5-Year Warranty For Unmatched Peace Of Mind Honda’s True 5 Warranty is the best in the business. | |
| This transferable, non-declining warranty is the same on the first day as it is on the last. Easy-Starting, Maintenance-Free Transistor Ignition Maintenance-free, high-energy output for quick and easy starts. | |
| Easy To Carry And Install A front-mounted carrying handle provides superior portability and ease of installation. 360° Swivel Steering For Added Maneuverability Provides excellent maneuverability in tight areas as well as full thrust in reverse (at 180°). | |
| Centrifugal Clutch For Better Performance The centrifugal clutch maintains a smooth idle and, when advanced, automatically engages the prop above idle speed. It’s like having a neutral position. Convenient Fold-Down Tiller The BF2.3 tiller folds up or down for easy stowing. | |
| 4-Front Corrosion Protection System Fights The Elements A patented, “Double-Sealed” multi-layered paint process, sacrificial anodes, stainless steel technology, and waterproof connectors enhance corrosion protection. | |
| Internal Fuel Tank For Easier Portability With 12% more capacity over its predecessor, the BF2.3 now runs up to 60 minutes at full throttle on a tank of fuel. The internal tank facilitates easy removal and portability as a single unit. Easy Maintenance Convenient oil fill and drain. | |
| Steering Friction Adjustment Allows you to adjust steering tension for ease in maneuverability. Adjustable Trim Four manual settings ensure proper trim angle for maximum performance. Shallow Water Drive Allows you to run in shallow water and greatly reduces the risk of engine damage. | |
| Propeller Included A shock-resistant plastic propeller comes standard. Carburetor Drain Screw For Easy Storage Prep Allows quick and easy draining of the carburetor’s float bowl for extended storage periods. Dual Lockable Transom Clamps Provides extra security when mounted to the transom. | |
| Sheer And Cotter Pin Keeper The self-contained keeper stores two extra sets of cotter and sheer pins close at hand, so you’ll be prepared if and when you need them. SPECIFICATIONS Honda Model No. BF2.3DHLCH | |
| Engine Type | 4-Stroke OHV, 1 Cylinder / |
|---|---|
| 2 Valves Displacement | 57.2 cc (3.49 cu.in.) |
| Bore & Stroke | 45 mm x 36 mm (1.8″ x 1.4″) |
| Full Throttle RPM Range: 5,000 | 6,000 rpm |
| Rated Power | 2.3 hp (1.7 kw) |
| Cooling System: Forced Air Ignition System: Transistorized CARB Rating | 3-Star |
| Ultra Low Emission Fuel: Unleaded 86 Octane Fuel Tank Capacity | 0.29 gal. (1.1L) |
| Starting System: Recoil Exhaust | Under |
| Water, Above Propeller Lubrication: Oil Slinger System Trim Range | 4-Stage |
| (5°, 10°, 15°, 20°) Tilt Range: 75° Drive Gear Ratio | 2.42:1 |
| Steering Angle: 360° Pivot Propeller | 3-Blade Plastic Diameter x Pitch: 7.25″ x 4.75″ |
| Dimensions Overall Width | 11.2″ (285 mm) |
| Transom Height L-Type (20″ Shaft) | 22.5″ (571 mm) |
| Dry Weight L-Type (20″ Shaft) | 31 lbs. (14 kg) Efficient 4-stroke design More horsepower in a lightweight portable outboard Twist grip throttle for precise control Larger internal gas tank Full 360° steering and pivoting tiller handle |
