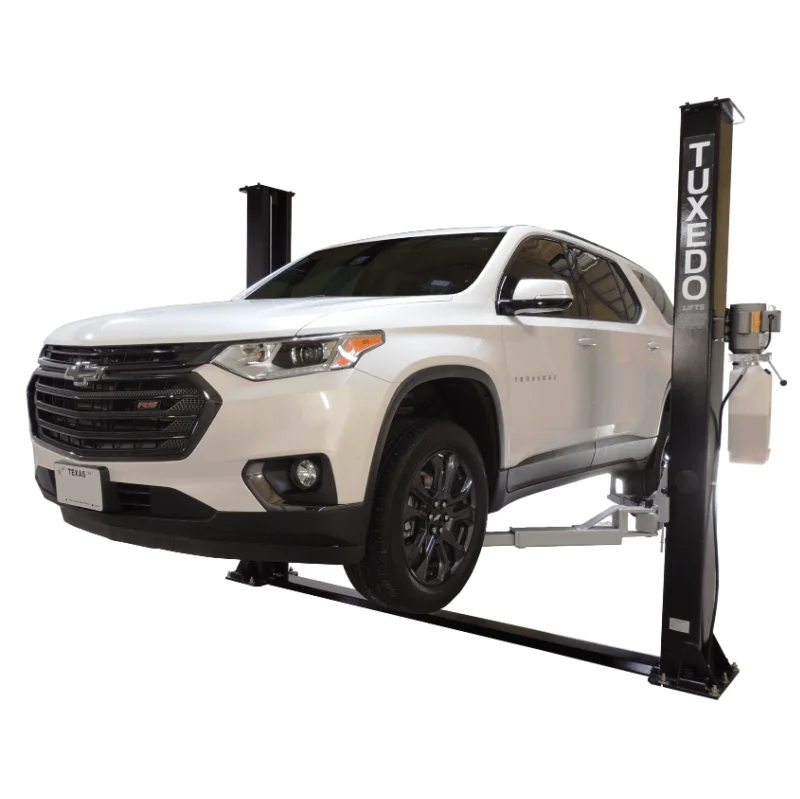

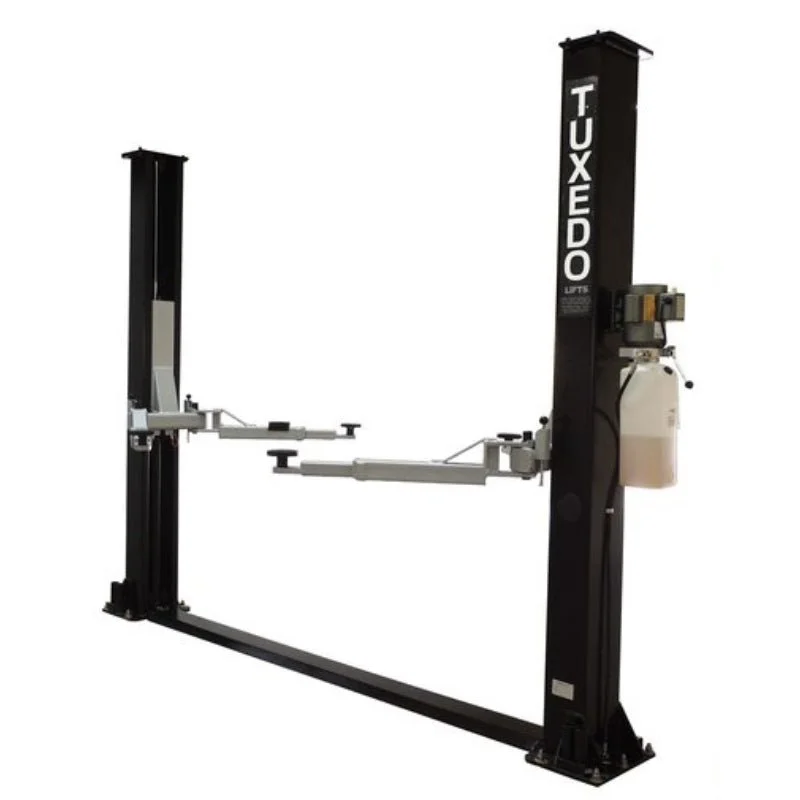

Tuxedo TP9KF TUX 2 Post Car Lift Are you tired of struggling with those bulky, heavy-duty vehicles in your shop? Well, buckle up, because the Tuxedo TP9KF-TUX Two Post Floor Plate Lift is about to revolutionize the way you work.
Product Details & Specifications
| This bad boy has 9,000 lbs lifting capacity, making it the ultimate workhorse for almost all your car repair needs. Equipped with symmetric arms, it provides balanced support for your vehicles, ensuring a smooth and stable lift every time. And the chain drive cylinders? | |
| They deliver reliable operation that you can count on, day in and day out. The low-profile drop-in lift pads on this beauty mean you can accommodate even the lowest-riding vehicles with ease. And the included saddle pad adaptors and stackable adapters? | |
| They’re the icing on the cake, allowing you to fine-tune the lift height to suit your specific needs. | |
| With a 101-11/16″ drive-thru clearance and a 72″ maximum lift height, This Two Post Floor Plate Lift is the perfect blend of performance, safety, and convenience, making it an essential addition to any automotive maintenance setting. | |
| Get ready to tackle those heavy-duty jobs with ease, all while keeping your workspace looking sleek and professional. | |
| Tuxedo TP9KF-TUX Specification: Capacity | 9,000 lbs |
|---|---|
| Height Overall | 112″ Width Overall w/ |
| Power Unit: 141″ Max Lift Height: 72″ Width Between Columns | 110-3/8″ Min |
| Pad Height: 4″ Drive Thru Clearance: 101″ Lifting Speed | 50 seconds Asymmetric / Symmetric: Symmetric Clear Floor / |
| Floor Plate | Floor Plate Short Arm Reach – min/max: |
| 31″-45″ Long Arm Reach | min/max: |
| Same Narrow Bay Setting | Not applicable |
| Max Load Per Arm | 2,250 lbs |
| Cable Thickness: 3/8″ Power: 220V | 20 AMP – |
| 1PH Ship Weight | 1,295 lbs |
| Pallet Dimensions | 113″ x 21″ x |
| 38″ TP9KF TUX Parts & Special Features | 9,000 lb capacity Symmetric Arms Chain Drive Cylinders Dual Point Lock Release Auto Arm Restraint System Low profile drop-in Lift Pads SADDLE PAD ADAPTORS (1 Pair) Stackable Adapters Included Black color standard Warranty: |
| 5 Years Structure, 1 Year Parts | Under Normal Use Warehouse Pickup locations (No shipping charge): Temecula, CA 92590 Orlando, FL 32824 Kennesaw, GA 30144 Elwood, IN 46036 Maple Grove, MN 55311 Reidsville, NC 27320 Bohemia, NY 11715 Reading, PA 19605 Alvarado, TX 76009 West Valley City, UT 84119 |
