Description

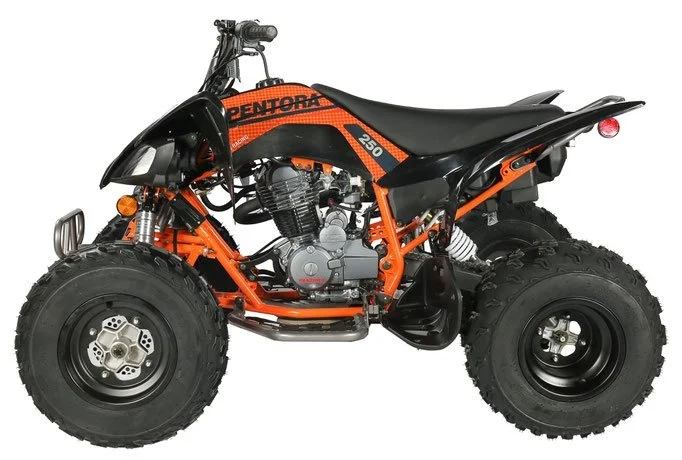

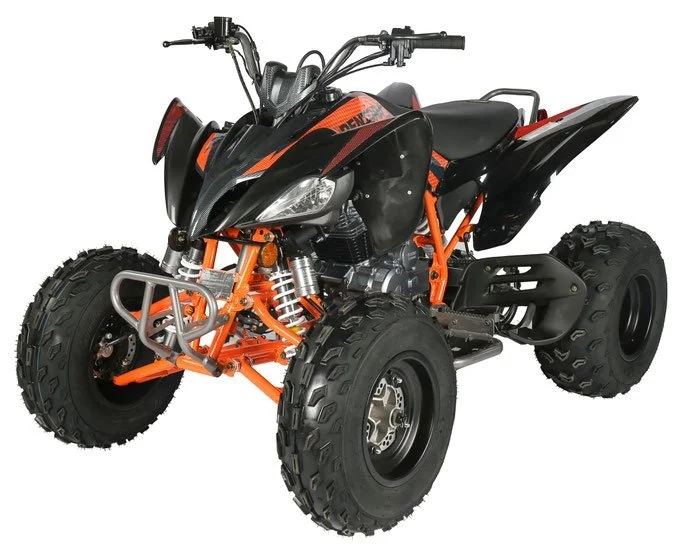

Product Overview
SPECIFICATION SPECIFICATION PARTS SPECIFICATION L×W×H 1625*1060*1065 WHEELBASE 1090±20mm FRONT WHEELBASE 820mm REAR WHEELBASE 830mm MINIMUM GROUND CLEARANCE 135±15mm SEAT HEIGHT 790±15 mm RIDE HEIGHT 225mm HANDLE HEIGHT 1000mm PACKING SIZE 1460*880*860mm 62pcs/40HQ MINIMUM TURNING CIRCLE DIAMETER
Product Details & Specifications
| 5900±500mm TURNING ANGLE <45° RATED LOAD 100kg NET WEIGHT 149kg GROSS WEIGHT (WITH PACKING) 177kg F&R BRAKE F&R HYDRAULIC DISC F&R BRAKE OPERATION TYPE FRONT HAND BRAKE, REAR FOOT BRAKE F&R RIM 10*5.5AT/9*8.0AT F&R TYRE AT20*7.0-10/AT19*10-9 TRANSMISSION CHAIN TECHNICAL SPECIFICATION FUEL TANK 9L` |
| BATTRY 12V/7HA ` MAXIMUM SPEED 70km/h SPECIFICATION STARTING PERFORMANCE 15S CLIMBING PERFORMANCE 21° PARKING PERFORMANCE ≥18° EMISSION INDEX CO (%) ≤3.8 HC(PPm) ≤800 db.(A) ≤82 dB(A) ENGINE SPECIFICATION MODEL LC166FMM TYPE SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE BRAND LONCIN |
| BRORE×STROKE 65.5×66.2mm capacity 223mL COMPRESSION RATIO 9.0:1 MAX.POWER 12（1±5%）kW /7500（1±5%）rpm MAX.TORQUE 17（1±5%）N · m /6000（1±5%）rpm Min no load speed 1500（1±10%） r /min min fuel consumption rate 354g / kw.h Fuel no. ≥RQ90 CLUTCH METHOD Manual Start Electrical start cdi C.D.I PARTS |
| SPECIFICATION carb PZ30 Spark plug D8TC Front light 12V18-18W TECHNICAL SPECIFICATION Max speed 70km/h Start time 15S break 前轮力和 ≥60% 前轮力差 ≥55% 后轮力和 ≤20% 后轮力差 ≤24% CLIMBING PERFORMANCE 21°° PARKING PERFORMANCE ≥18% EMISSION INDEX CO (%) ≤3.8 HC(PPm) ≤800 db(A) ≤82 dB(A) Starting acceleration（S） ≤8 |
| Speed acceleration（S） ≤8 Parts spec Tank capacity 9L Fr. & re suspension Oil dumper Fr. &re suspension L=350 m m /L=390 m m |
